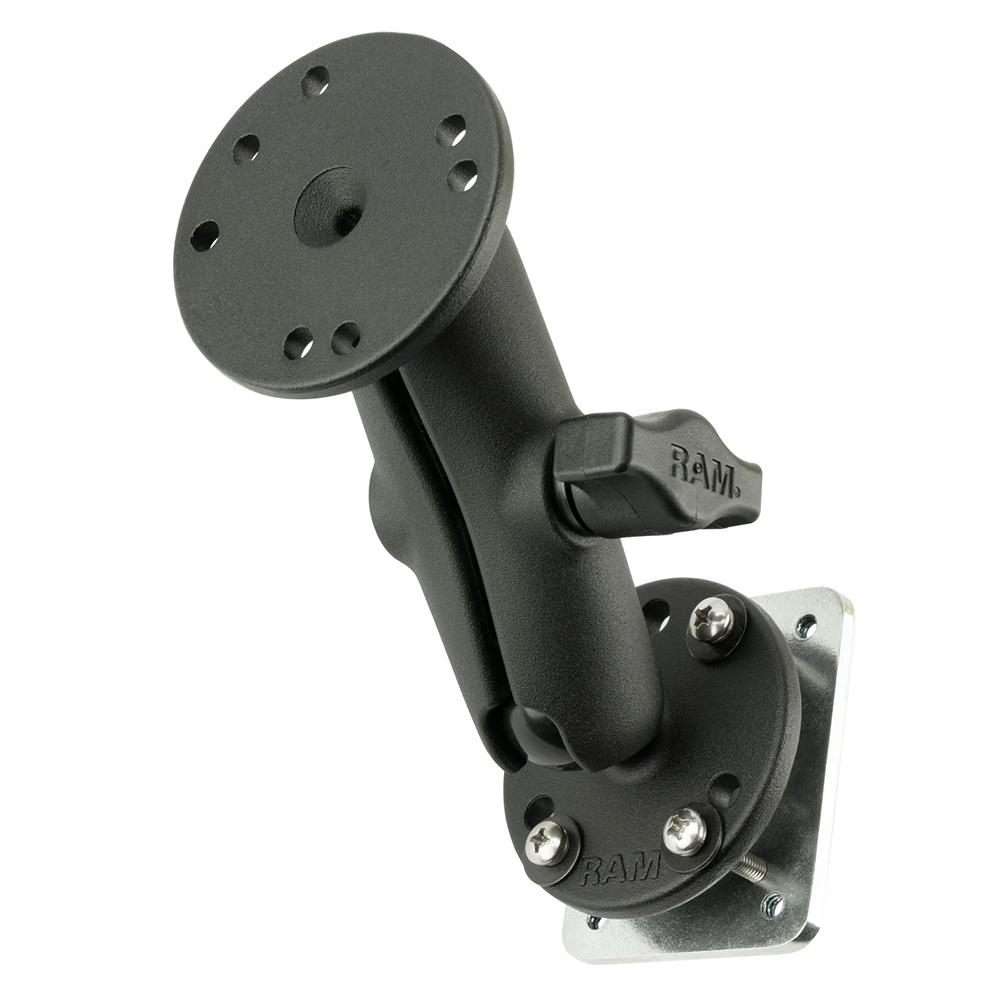

RAM Mount Double Ball Mount w/Backing Plate

Double Ball Mount with Backing Plate

This mount consists of a double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

Features:

• 2.10 in. x 2.60 in. steel backing plate attaches to a variety of RAM® Mounts ball bases
• 2.5 in. round plate with a B-size 1 in. RAM® rubber ball connects to RAM® device holders containing the universal AMPS hole pattern; includes a B-size medium-length double socket arm
• Made of stainless steel and high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Specifications:

• Hardware Included: (1) 2.10" x 2.60" Steel Backing Plate, (4) #8-32 x 1" Screws, (4) #8 Split Lock Washers, and (4) #8 Flat Washers
• Product Dimensions (inch): Overall Height: 5"
• Socket to Socket Length (inch): 3”
• Hole Pattern (inch): 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
• Plate Size (inch): 2.5" Diameter, 3" x 3" Square Plate
• Ball Size (inch): B size (1”)
• Weight Capacity: The standard use is 2 lbs. and the heavy-duty use is 1 lb.
• Materials: Marine-grade aluminum and stainless steel
• Weight: 0.79 lb.
