RAM Mount RAM® ATV/UTV Ball Base f/Rails Up To 3.15" - Zinc

RAM® ATV/UTV Ball Base for Rails Up To 3.15" - Zinc

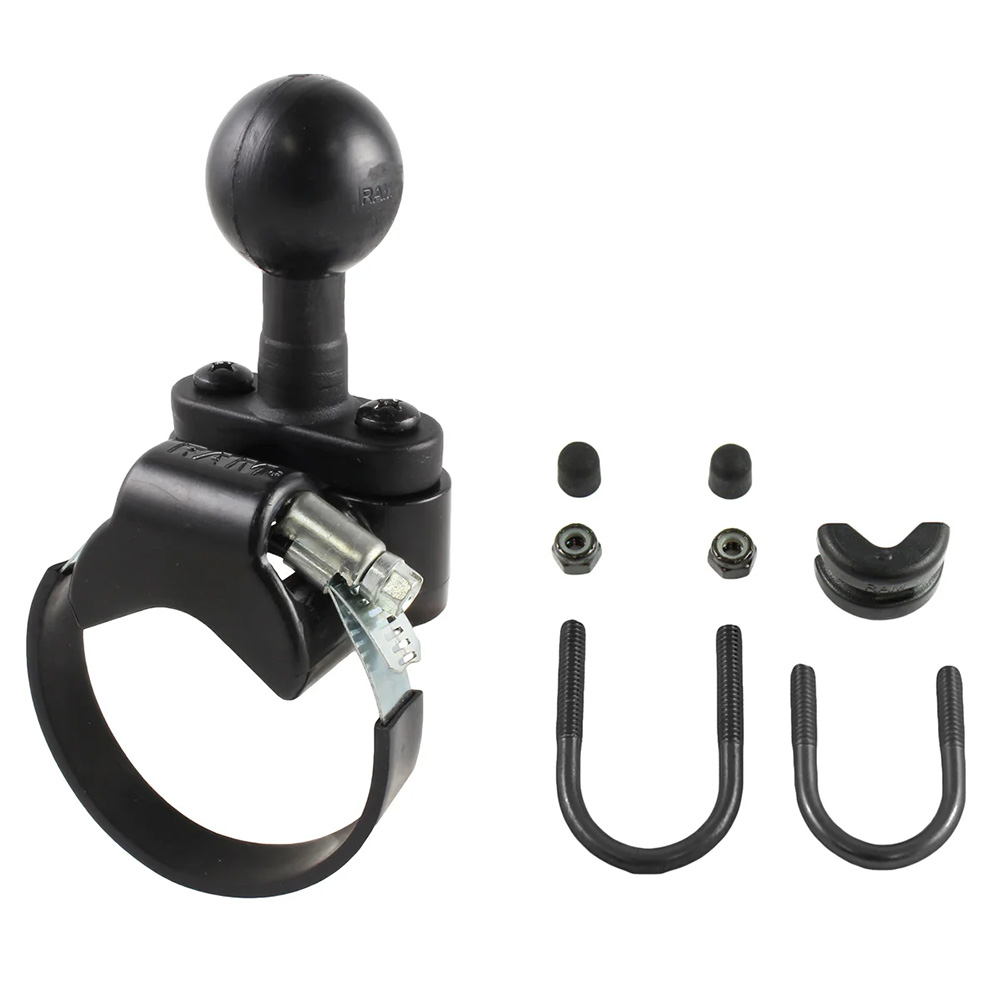

Designed for a clean installation, the RAM-B-231Z-2U base accommodates most common rail and bar sizes on UTVs and ATVs. With the strap clamp safely concealed in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc-coated metal U-bolt, allowing you to modify the mount for another mounting location. The base also includes black cover caps to be placed over the exposed ends of the U-bolt.

Features:

• Rail and bar base for UTVs and ATVs includes strap clamp and U-bolt components
• Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Hardware Included:

• (1) Strap Clamp Adapter
• (2) 1/4"-20 x 1" Machine Screws
• (2) 1/4"-20 Nylock Nuts
• (1) Zinc Worm Drive Strap Clamp
• (1) 6" Rubber Strip
• (1) 1/4"-20 U-Bolt for .5" - 1" Rails
• (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
• (2) Rubber Caps
• (1) U-Bolt Spacer

Specifications:

• Clamp Range: U-Bolt: .5" - 1.25" diameter, Strap Clamp: 1.57" - 3.15" diameter
• Ball Size: B Size (1")
• Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
• Materials: Marine-grade aluminum, high-strength composite
• Packaging Type: Poly Bag
• Weight: 0.55 lbs.
