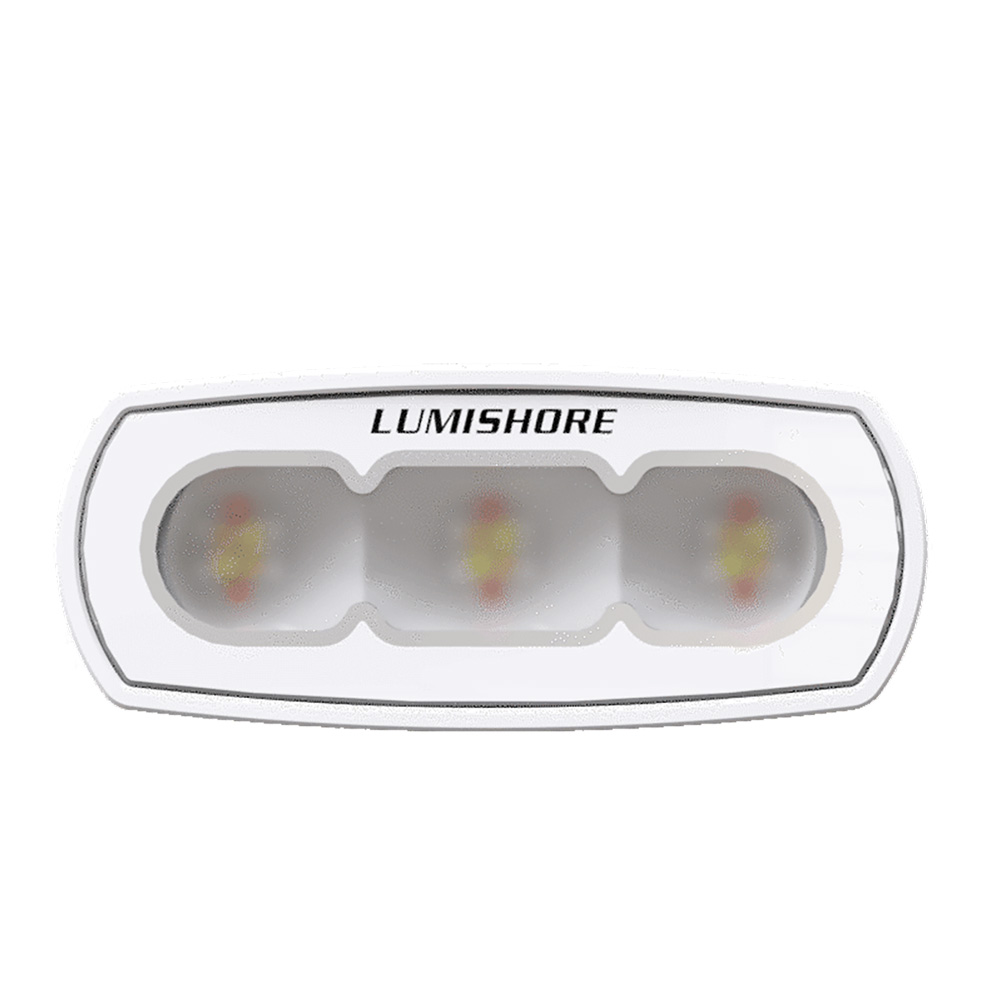

Lumishore LUX 4" Flood Light - White Housing

LUX 4" Flood Light - White Housing

The world’s first CRGBW Flood Lights — powerful, precise, and built for the water.

Lumishore’s 4" LUX Flood Lights deliver 1,050 fixture lumens through a wide 70°–90° beam, perfect for decks, cockpits, and onboard security. With full CRGBW capability (including warm + cold white), they offer smooth, vibrant color and dimmable control.

Compact and low-profile, they mount easily to T-tops, arches, transoms, and more. Built from marine-grade powder-coated aluminium and IP68 rated for durability.

Control via switch or integrate with your compatible MFD or Lumishore Display.

Specifications:

• Lumens: 2,360
• Fixture Lumens: 1,050
• Number & Type Of LED: Warm White, Cold White, Red, Green, and Blue (5 Channel)
• LED Power HICOB Array: Yes
• Typical LED Life: 50,000+ Hours
• Warranty: 2 Years
• User Control Options: EOS-LUX Command Center or Customer Supplied Momentary Switch
• Electrical Installation: Simple 3 Wire Connection (see installation manual)
• Housing Type: Powder Coated Aluminium Body with Frosted Lens
• Driver: Multi-Channel Internal
• Supply Voltage Range: 10.5—31 V DC
• Max Current Draw 12/24V: 1.7 A/0.9 A
• Beam Angle: 70° - 90° Oval Beam
• Water Ingress Protection Rating: IP68
