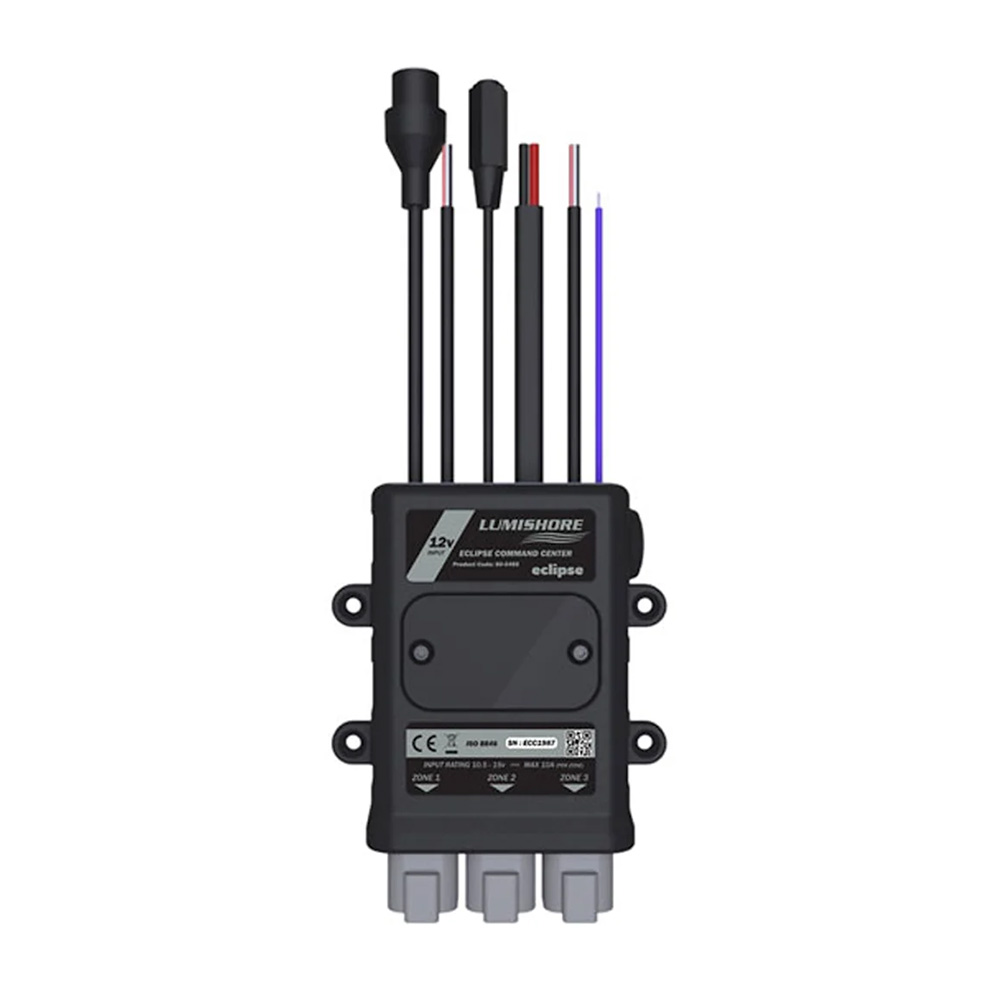

Lumishore ECLIPSE Command Center

ECLIPSE Command Center

The ECLIPSE Command Center allows seamless integration and control of your ECLIPSE lights via your MFD.

This is the World’s first ultra-compact box to include built-in drivers and zones for multiple types of lights. With 3 built-in configurable lighting zones that can each be set up to control your lights, and expansion modules available to increase that capability to up to 6 zones.

Built-in Wi-Fi allows for direct smart device connectivity. Connect to compatible MFDs via an Ethernet port. Or control your lighting zones via a simple switch.

Lumishore’s intuitive interface makes accessing and managing your lighting zones simple!

Specifications:

• Supply Voltage Range: 12V DC Only (10 - 15V DC)
• Max Current Draw (12/24V DC): 30A (3 Zones of 10A)
• Surge Protection: Yes
• Number of Zones: 3 (add 3 more with expansion modules)
• Max Current Per Zone: 10A
• Max No. Lights Per Zone: 16 (total current draw must be 10A or less)
• Low Voltage Protection: Yes
• Reverse Polarity Protection: Yes
• Ingress Protection: IP67
• Simple Installation: Yes
• Plug-and-Play Setup: Yes
• Dimming: Yes
• Color Selection: Yes
• Sound-to-light: Yes
• Strobe: Yes
