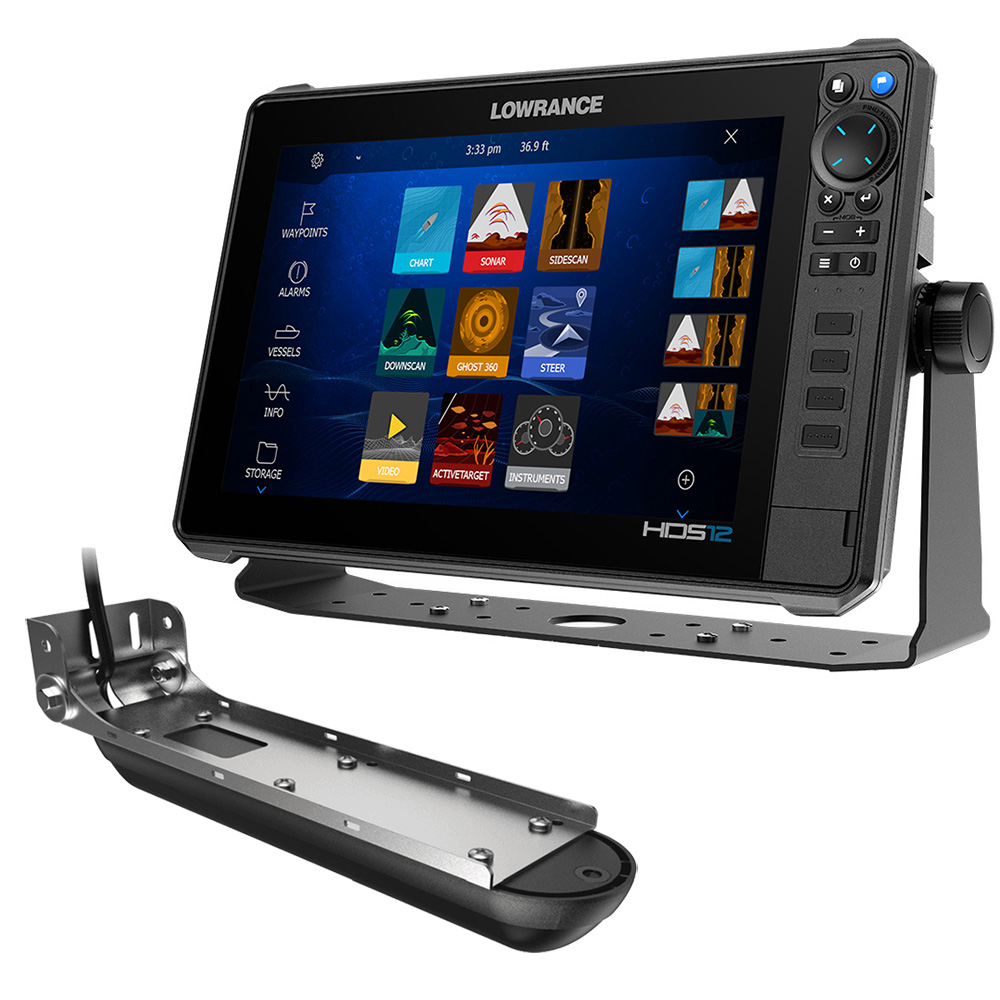

Lowrance HDS PRO 12 w/Preloaded C-MAP DISCOVER OnBoard & Active Imaging 3-in-1 Transom Mount Transducer

HDS PRO 12 with Preloaded C-MAP DISCOVER OnBoard & Active Imaging 3-in-1 Transom Mount Transducer

See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get a full fishing system that networks with expanded boat control from bow to stern.

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
• SolarMAX™ HD Touchscreen is viewable at extreme angles and through polarized lenses
• High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
• High-resolution ActiveTarget 2 Live Sonar ready
• FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)
• Real-time mapping is available with C-MAP Genesis Live.
• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
• Large programmable keys
• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
• NMEA 2000, wireless and Bluetooth, connectivity – plus smartphone notifications

Display:

• Backlight Color: Pure white LED
• Display Resolution: 1280 x 800
• Viewing Angles: 80° top/bottom, 80° left/right

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
• Ethernet Ports: 2 x 100 Mbit, 6 max MFDs on a network
• Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module
• NMEA 2000 Connectivity: 1x Micro-C
• SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

• Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on
• Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on
• Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on
• Recommended Fuse Rating: 5A
• Supply Voltage: 12V DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )

 GPS:

• GPS Receiver Channels: 16
• Update rate: 10 Hz

MFD (Multi-Function Display):

• Cartography included: C-MAP Discover OnBoard (AMER models)
• Internal Storage: 8.0 GB Internal
• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

*Sidescan Fish Reveal requires S3100 module and a compatible transducer

Active Imaging 3-in-1 Transom Mount Transducer

See structure and cover with a level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan, and DownScan with FishReveal™. The high-level clarity, target separation, and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches, and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Features:

• More refined detail and better range than any other imaging technology
• Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan, and DownScan
• Easier target identification with FishReveal™ Smart Target View
• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
• Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2, and Simrad NSS evo3 and GO series displays

Environmental

• Operating temperature: -15°C to +55°C (+5°F to +131°F)
• Storage temperature: -30°C to +70°C (-22°F to +158°F)

Physical

• Cable length:   7.6 m (25 ft)
• Mounting options: Transom, flush step, and jackplate mounting
• Connector: 9-pin

Transducer

• Output: Traditional, SideScan imaging, DownScan imaging, and temperature
• Frequency: Traditional: 200 kHz/High: Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz
• Max depth: Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft)
• Operating speed: Traditional: 48 knots (55 mph): DownScan and SideScan: 9 knots (10 mph)

What's In The Box?

• HDS PRO fishfinder/chartplotter (12-inch display screen)
• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
• Active Imaging 3 in 1 Transom Mount Transducer
