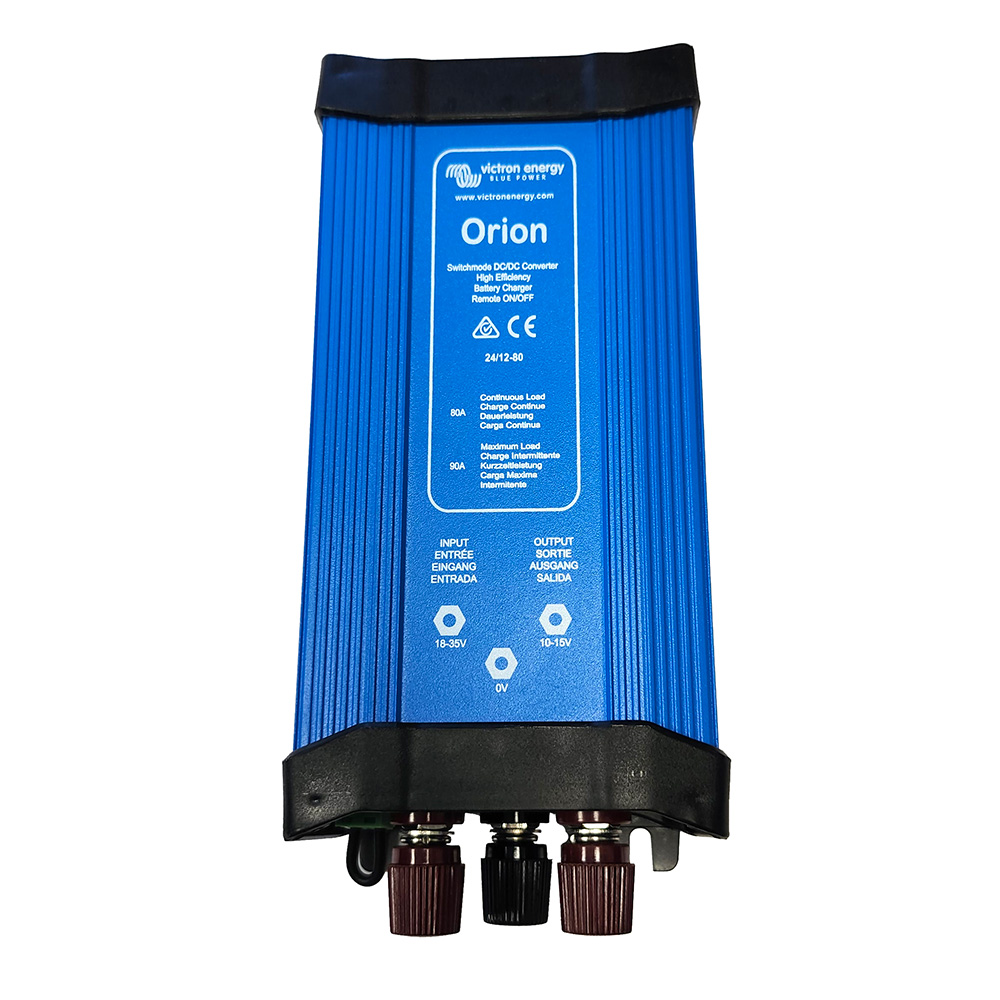

Victron Orion 24/12-80 DC-DC Non-Isolated Converter w/Binding Posts
Orion 24/12-80 DC-DC Non-Isolated Converter with Binding Posts
The Victron Energy Orion 24/12-80 DC-DC Converter with Binding Posts is a high-power non-isolated converter designed to convert 24V DC to a stable 12V DC output with up to 80A output current. Featuring heavy-duty binding post terminals, it provides a reliable solution for vehicles, marine systems, and industrial installations requiring high-current 12V power from a 24V system.
The Victron Orion 24/12-80 DC-DC Converter is designed to efficiently convert 24V DC input into a regulated 12V DC output, allowing 12V equipment to operate safely within a 24V electrical system. With an output capacity of 80A, it is capable of powering high-demand 12V loads, including lighting, communication equipment, refrigeration, and onboard electronics.
This version of the Orion converter is equipped with binding post terminals, providing a secure and robust connection for higher current applications. These terminals allow installers to connect larger cables more easily, making them particularly suitable for professional vehicle, marine, and off-grid installations.
The converter includes a remote on/off connector, which eliminates the need to install a high-current switch in the input wiring. The unit can instead be controlled using a low-power switch or directly from an engine run/stop signal, allowing the converter to activate automatically when the system or vehicle is running.
Although some Orion models feature adjustable output for battery charging applications, this converter is commonly used to supply stable 12V power from a 24V battery bank. In systems requiring more output current, multiple Orion converters can be connected in parallel, with up to five units operating together to increase total capacity.
Features:
- Converts 24V DC to a regulated 12V DC output
- High output current of 80A for demanding loads
- Binding post terminals for secure high-current cable connections
- Designed for vehicles, marine systems, and industrial installations
- Remote on/off connection eliminates the need for a high-current switch
- Can be controlled via a low-power switch or an engine run/stop signal
- Suitable for powering 12V equipment in 24V electrical systems
- Parallel operation is supported to increase output capacity
- Up to five converters can be connected in parallel
