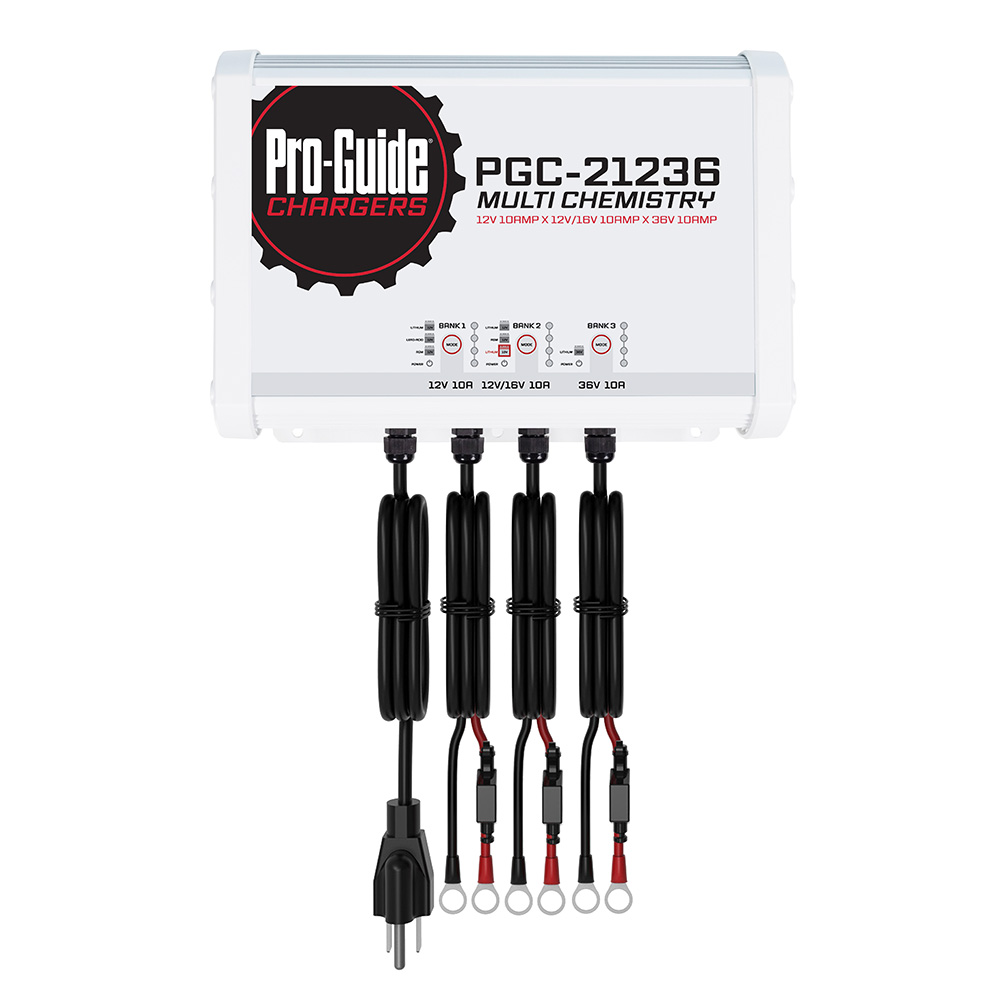

Pro-Guide 3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp

3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp

The Pro-Guide PGC-21236 is a 12V Lead Acid / AGM / Lithium, 16V Lithium & 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, a second bank to charge a 12V AGM, Lithium, or 16V Lithium, and then a third bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium, 16V Lithium & 36V Lithium
• Output Voltage: DC 12V x 1, DC 12V/16V x 1 & DC 36V x 1
• Max Output Voltage: 14.1-14.3 for 12V Lead Acid Battery, 14.3-14.7 for 12V AGM Battery, & 14.4-14.7 for 12V Lithium Battery, 18-18.3 for 16V Lithium Battery, & 43-44 for 36V Lithium Battery
• Output Current: 10A for 12V Bank, 10A for 12/16V Bank & 10A for 36V Bank
• Length: 14.7"
• Width: 9.96"
• Height: 3.86"
• Weight: 24.7 lbs
• IP Rating: 68
