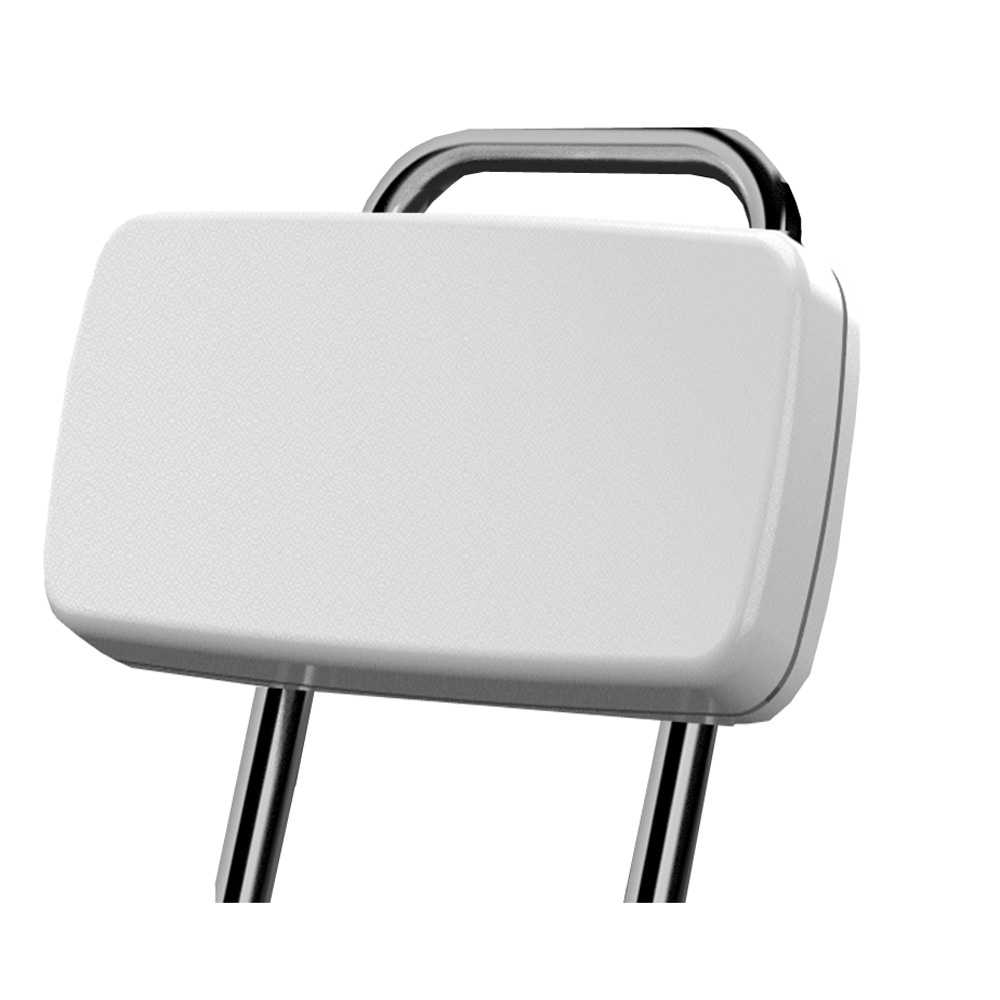

Scanstrut Scanpod Helm Pod System pod for 8" display plus 4 nav instruments or 12" display plus 2 nav instruments

Scanpod Helm Pod System - White

With great new design features, the Scanstrut Helm Pod is a perfect choice for all cockpit configurations.

With options to fit radar displays, chartplotters and standard navigation instruments.

Usable face : 21w x 11h

Range of Models

Helm Pod – System Pod for 8" screen + 4 standard nav instruments; or 12" screen + 2 standard nav instruments

Universal Helm Fixing

Fits pedestal rails from 25mm to 33.7mm (0.98" - 1.33"). Using a unique clamping system, the Pod can fit rail widths from 178mm (7") upwards.

Secure & Watertight Install

Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry

No Drill Fixing Kit

Customised U-bolts fit around rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.

Hassle Free Install & Service

Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.

Increased Protection

Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won't deteriorate over time.

Supplied Uncut

As standard you will receive your Scanpod uncut. For larger orders, a factory cutting service is available.
