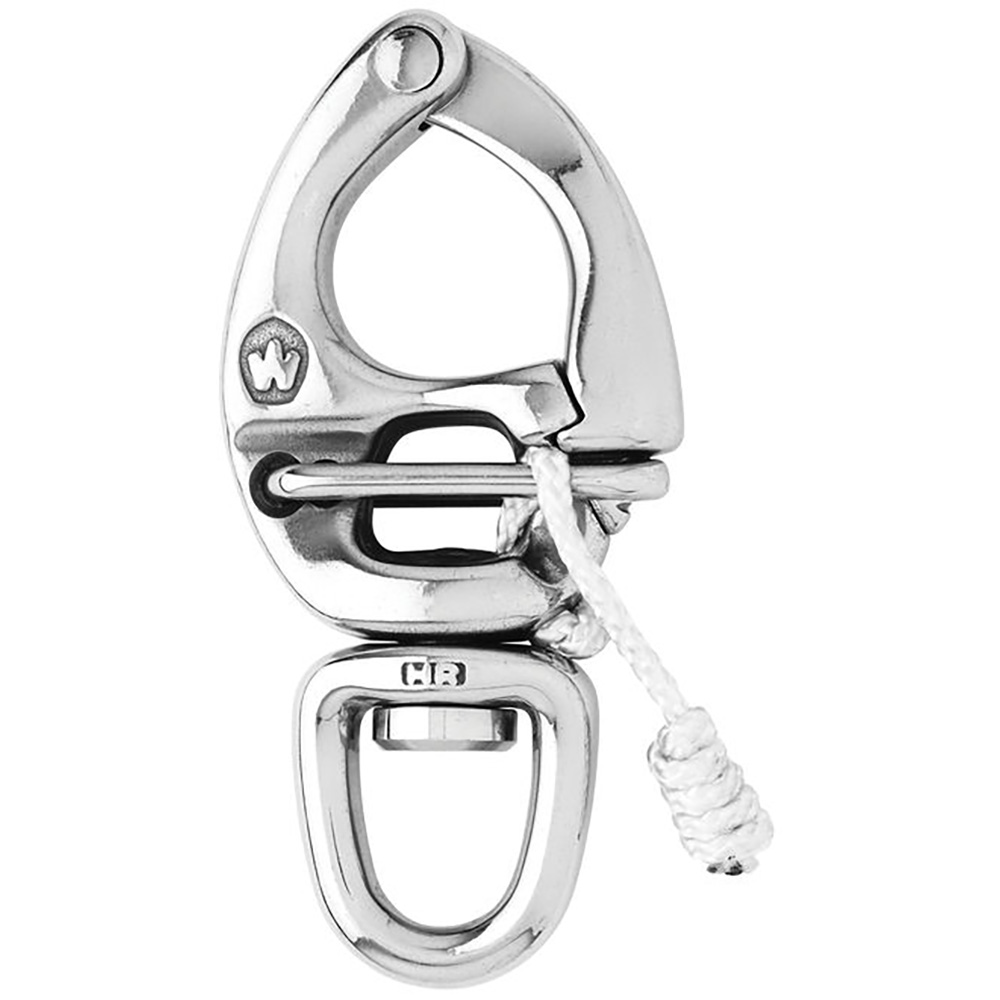

Wichard HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35/64"
HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35/64"
Features:
- HR forged (17.4 PH) quick-release snap shackle with swivel eye
- The opening is made by pulling the lanyard
- Perfect to attach one sheet or halyard
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect for spinnaker sheets and halyards
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 3520 / (kg) 1600
- Breaking load: (lb) 7050 / (kg) 3200
Dimensions:
- A: (inch) 25/32" / (mm) 20
- B: (inch) 17/32" / (mm) 13.5
- Length: (inch) 3 35/64" / (mm) 90
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
