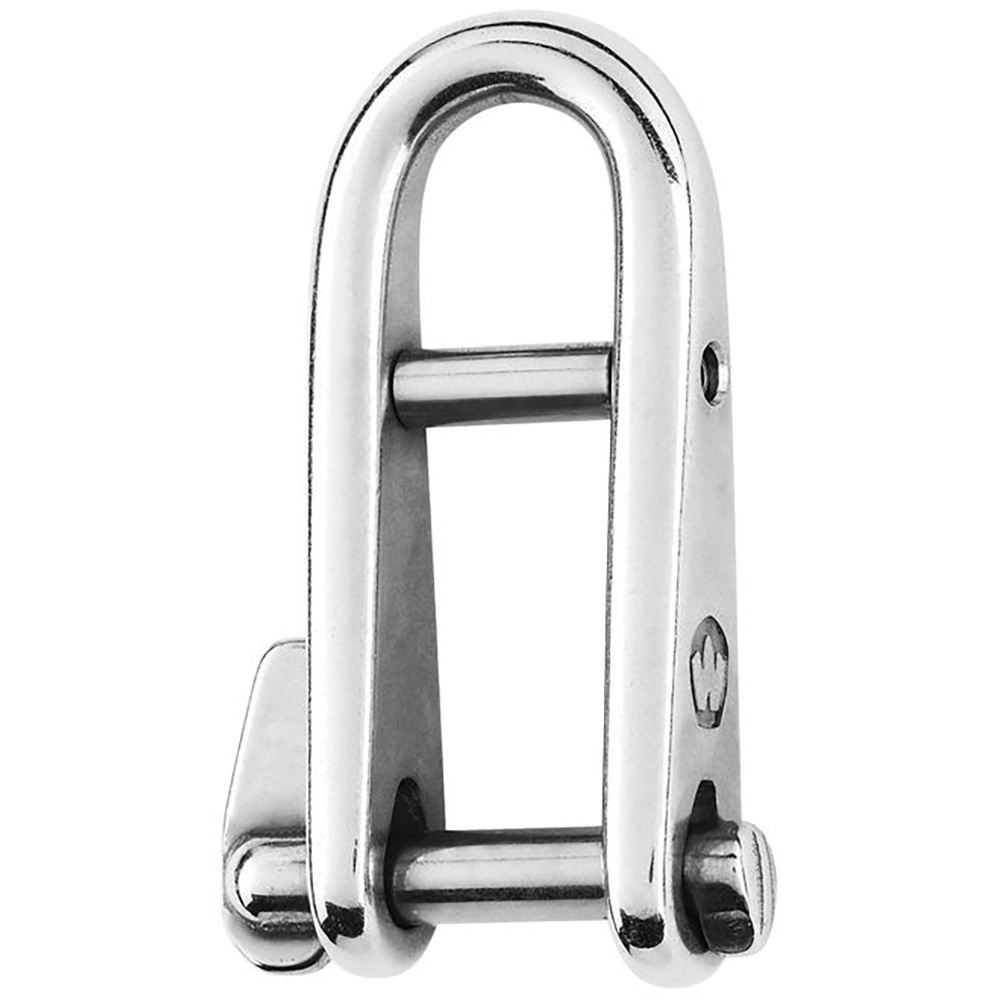

Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter
HR Key Pin Shackle With Bar - 8mm Pin Diameter
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Perfect product for halyards or applications requiring to opening/closing the shackle often
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 2110 / (kg) 960
- Breaking load: (lb) 7710 / (kg) 3500
- Weight: (lb) 0.271 / (g) 123
Dimensions:
- A: (inch) 2 21/64" / (mm) 59
- B: (inch) 53/64" / (mm) 21
- C: (inch) 5/16" / (mm) 8
- D: (inch) 43/64" / (mm) 17
- E: (inch) 15/64" / (mm) 6
- F: (inch) 3 7/64" / (mm) 79
- G: (inch) 1 57/64" / (mm) 48
- L: (inch) 25/32" / (mm) 20
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
